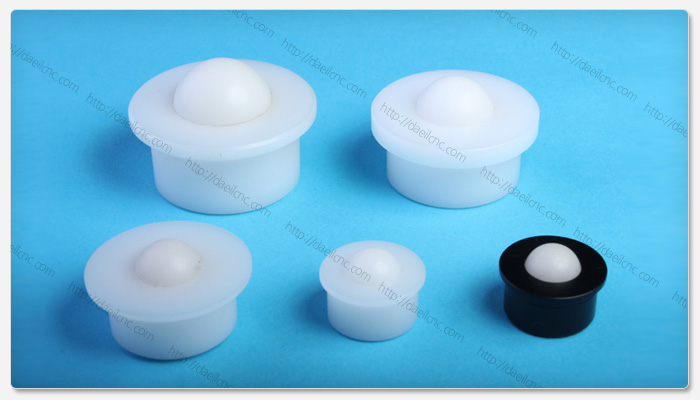

- DLP-H TYPE
Features & Advantages
- - It’s to be inserted and installed, proper when trying to lower the use surface.
- - Being made of plastic, it’s light and can serve under various environments.
- - It’s applicable to clean work sites and production lines of foods or drugs.
- - The ball can be made of plastic, steel or stainless.
Dimension(mm)
Specification & Size(mm)
| Model |
Ball Size |
Ød |
h |
L |
ØD |
E |
H |
T |
自重 |
靜止荷重 |
| DLP-07H |
Ø7.98 |
13.0 |
2.9 |
3.9 |
15.0 |
6.9 |
10.8 |
1.0 |
2g |
0.5kg |
| DLP-08H |
Ø8.731 |
13 |
2.8 |
3.8 |
15 |
8 |
11.8 |
1 |
1.8g |
0.7kg |
| DLP-08H PEEK |
Ø9.525 |
13 |
3 |
4 |
15 |
8 |
12 |
1 |
1.8g |
0.8kg |
| DLP-09H |
3/8" |
18.0 |
3.7 |
4.7 |
23.0 |
9.0 |
13.7 |
1.0 |
4g |
1.0kg |
| DLP-10H |
Ø10.32 |
15.0 |
3.5 |
4.5 |
17.0 |
8.0 |
12.5 |
1.0 |
2.6g |
1.1kg |
| DLP-12H |
1/2" |
22.0 |
5.0 |
8.5 |
27.0 |
9.0 |
17.5 |
3.5 |
8g |
1.0kg |
| DLP-16H |
5/8" |
24.0 |
6.5 |
9.5 |
30.0 |
11.5 |
21.0 |
3.0 |
12g |
2.0kg |
| DLP-19H |
3/4" |
30.0 |
7.8 |
9.8 |
39.0 |
16.5 |
26.3 |
2.0 |
20g |
3.0kg |
