- DL BOLT TYPE
Features & Advantages
- - It’s easy to install.
- - Being made in a cutting process, it can maintain its strength under heavy load and it boasts good rolling and small
noise.
- - It can move around a heavy object in 360°
- - It can make a ball out of plastic, stainless and steel.
- - Bolts are detachable except for 04B 05B 06B 07B 09B 12B 16B and 20B.
- - The ball transfer’s working load is 60% of it’s static load or less.

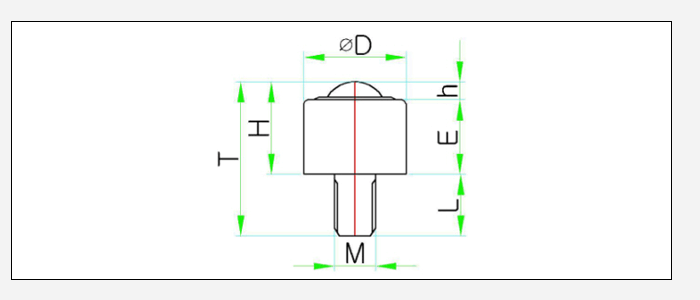

Dimension(mm)
Specification & Size(mm)
| Model |
Ball Size |
E |
h |
ØD |
L |
T |
H |
M |
own weight |
static load |
| DL04B |
1/4" |
7.5 |
1.5 |
12.0 |
12.0 |
21.0 |
9.0 |
M6 |
0.01kg |
20kg |
| DL04B SUS |
1/4" |
7.5 |
1.5 |
12.0 |
12.0 |
21.0 |
9.0 |
M6 |
0.01kg |
7.0kg |
| DL04B-1 SUS |
1/4" |
7.5 |
1.5 |
12.0 |
12.0 |
21.0 |
9.0 |
M5 |
0.01kg |
7.0kg |
| DL05B |
3/16" |
8.0 |
1.0 |
13.0 |
15.0 |
24.0 |
9.0 |
M6 |
0.01kg |
20kg |
| DL06B |
1/4" |
9.0 |
1.5 |
16.0 |
15.0 |
26.0 |
11.0 |
M6 |
0.02kg |
35kg |
| DL07B |
3/8" |
12.5 |
2.5 |
15.0 |
12.0 |
27.0 |
15.0 |
M6 |
0.02kg |
40kg |
| DL08B |
5/16" |
12.0 |
2.0 |
18.0 |
18.0 |
32.0 |
14.0 |
M8 |
0.03kg |
50kg |
| DL09B |
3/8" |
14.0 |
3.0 |
20.0 |
20.0 |
37.0 |
17.0 |
M8 |
0.05kg |
60kg |
| DL10B |
3/8" |
17.0 |
3.0 |
23.0 |
20.0 |
40.0 |
20.0 |
M8 |
0.06kg |
70kg |
| DL12B |
1/2" |
14.5 |
3.5 |
20.0 |
12.0 |
30.0 |
18.0 |
M8 |
0.04kg |
50kg |
| DL13B |
1/2" |
20.7 |
3.5 |
28.0 |
23.0 |
48.0 |
25.0 |
M8 |
0.1kg |
80kg |
| DL16B |
5/8" |
16.5 |
4.0 |
24.0 |
12/17 |
32.5/37.5 |
20.5 |
M6/M8 |
0.05kg |
120kg |
| DL16B-I |
5/8" |
16.5 |
4.0 |
24.0 |
12/17 |
32.5/37.5 |
20.5 |
M6/M8 |
0.05kg |
120kg |
| DL18B |
3/4" |
26.5 |
6.0 |
31.0 |
20.0 |
52.5 |
32.5 |
M8 |
0.15kg |
140kg |
| DL18B-6 |
3/4" |
19.5 |
6.0 |
31.0 |
10.0 |
35.5 |
25.5 |
M6 |
0.105kg |
140kg |
| DL19B |
3/4" |
28.0 |
5.0 |
41.0 |
32.0 |
67.0 |
35.0 |
M8 |
0.29kg |
180kg |
| DL20B |
3/4" |
22.0 |
4.0 |
32.0 |
20.0 |
46.0 |
26.0 |
M8 |
0.13kg |
140kg |
| DL25AB |
1" |
30.5 |
8.0 |
42.0 |
20.0 |
62.0 |
42.0 |
M10 |
0.4kg |
200kg |
| DL25B |
1" |
35.0 |
6.0 |
52.0 |
40.0 |
85.0 |
45.0 |
M10 |
0.6kg |
260kg |
| DL30B |
1 1/4" |
34.4 |
9.5 |
53.0 |
40.0 |
87.0 |
47.0 |
M10 |
0.7kg |
330kg |
| DL38B |
1 1/2" |
47.8 |
10.0 |
72.0 |
45.0 |
110.0 |
65.0 |
M12 |
1.6kg |
400kg |
| DL51B |
2" |
49.6 |
15.0 |
95.0 |
45.0 |
115.0 |
70.0 |
M12 |
3.2kg |
500kg |
| DL51AB |
2" |
50.0 |
22.0 |
60.0 |
35.0 |
107.0 |
72.0 |
M12 |
1.3kg |
300kg |
